The Story

GO FAST TURN LEFT… REPEAT This exciting "alternative" way of riding a motorcycle comes straight from the US dirt tracks. This is in fact the very first production flat track inspired motorcycle with 19” street legal dirt wheels, front and rear. The Caballero Flat Track is born to give you a sideways view of life. Flat Track is a very simple style of racing. Jest keep turning left, lap after lap and challenge yourself to achieve the best lap time. Then toss in the mix other riders and the fun begins. Full gas on the straightaway, bend the bike sideways in the corners, keep the maximum speed possible and be fearless The Fantic Caballero Flat Track 500 is designed to give an adrenaline rush to every move you make. The 19" wheels, a characteristic of the Flat Track discipline, provide greater stability and control in turns, ensuring speed and control. Let your personality take over and let the breeze of your dreams carry you away.

Sale Off
Caballero Flat Track 500 - Avantizone.com
Caballero Flat Track 500 - Avantizone.com

    (129 reviews)

GO FAST TURN LEFT… REPEAT.
This exciting "alternative" way of riding a motorcycle comes straight from the US dirt tracks. This is in fact the very first production flat track inspired motorcycle with 19” street legal dirt wheels, front and rear. The Caballero Flat Track is born to give you a sideways view of life.

  • Hassle Free Delivery

    Hassle Free Delivery


  • Warranty

    TBD

  • Best Buying Experience

    We share happiness


  • After-Sale Service

    Best Service Guaranteed

no-track-quantity
  • Specifications
  • Dimensions/Frame
  • Chassis and Brakes
  • Capacity
  • Equipment

Engine

TYPE

Single cylinder 4 stroke, liquid cooled

Cooling System

Liquid Cooling
Displacement (cc)
449 cc
Stroke:

64 mm


Maximum power

29,5 kW @ 7100 rpm


Distribution:

Single camshaft - 4 valve


Maximum torque (Nm/rpm)

43 Nm @ 6000 rpm


Bore:

94.5 mm


Fuel system:

Electronic Fuel - throttle body ø 40mm


Starter:

Electric

Gears:

6

Clutch:

Multi plate wet clutch


Exhaust system:

Dual exhaust by ARROW


Frameset

Frame:

CrMo steel central-tube frame

Wheelbase (mm)
1425 mm

Seat height:

820 mm – optional seat 840mm

Fuel Tank:

12 l

Dry weight:

150 kg

Chassis and Brakes

Front wheel
130/80-19
Rear wheel
140/80-19
Front suspension
ø41mm upside down
Rear suspension
Rebound damping regulation
ABS
Continental two-channel ABS (disengageable)
Front brake

Front floating brake disc ø320mm
Rear brake
Rear brake disc ø230mm

Capacity

Petrol tank (imperial gallons)
12 l

Equipment

Instrument Cluster
Digital Instrument Cluster with LCD
Engine Kill Switch
Yes
Centre and side stand
Yes
Toolkit/ Side Stand Switch
Yes

CHASSIS
The Caballero Flat Track 500 is characterised by a Chrome-molybdenum steel central-tube frame which favours lightness once again, ensuring incredible agility and comfort. The front forks are 41mm upside-down FANTIC FRS, the rear suspension is an adjustable FANTIC FRS. The main feature of Flat Track bikes and this Caballero are the 19" wheels mounted on both the front and rear. This feature provides greater stability and control sideways. On the asphalt and in everyday use, safety is also enhanced in both wet and dry conditions. The 320mm front and 230mm rear wave brake discs, and the disengageable dual-channel Continental ABS make it even easier to use on the track.

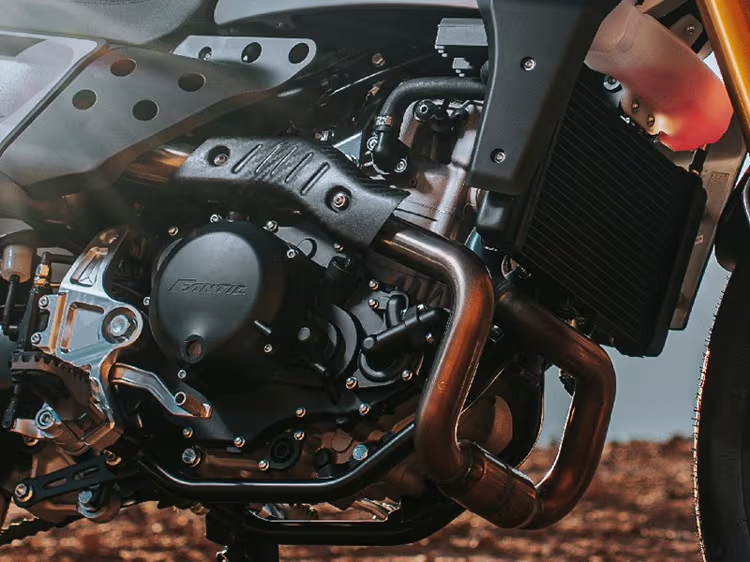

ENGINE
The single-cylinder, 4-valve, liquid-cooled, electronic fuel injection engine is now Euro 5 compliant. It provides a great performance on the asphalt, combined with efficiency on off-road tracks. The ECU control unit has an updated mapping, ensuring an even smoother engine power at all RPMs and also optimising performance in terms of maximum power and torque. The exhaust system is made in Italy by Arrow with twin chrome silencers.
